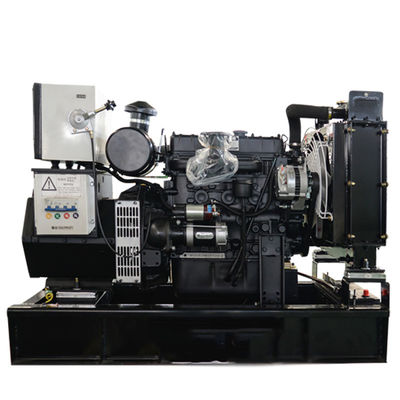

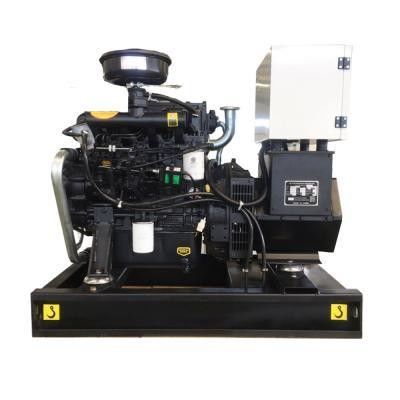

36 Rated Current 25 KVA Standby Power Low Fuel Consumption 16KW Diesel Generator Set

Large Image : 36 Rated Current 25 KVA Standby Power Low Fuel Consumption 16KW Diesel Generator Set

Product Details:

Place of Origin:	Shandong, China
Brand Name:	BOFA
Model Number:	BF-20GF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2,100.00/sets 1-9 sets

Contact Now

36 Rated Current 25 KVA Standby Power Low Fuel Consumption 16KW Diesel Generator Set

Description

Warranty:	3months-1year	Rated Voltage:	230V/400V
Rated Current:	36	Speed:	1500/1800
Frequency:	50HZ/60HZ	Starting System:	Auto Start, Remote Start, 12V DC Electric Start, 24V DC Electric Start
Weight:	500kg	KW:	20
KVA:	25	Current(A):	36
Engine Model:	WP2.3D25E200	Number Of Cylinders:	4
Bore * Stroke(mm):	89*92	Displacement (L):	2.29
Lubricating Oil Capacity(L):	8.5	Fuel Consumption (g/kw.h):	210
Unit Size(mm) (LWH):	15506301150

Product Display

Genset Model	BF-20GF
KW	20
KVA	25
Current(A)	36
Engine Model	WP2.3D25E200
Number of cylinders	4
Bore * Stroke（mm）	89*92
Displacement (L)	2.29
Lubricating oil capacity（L）	8.5
Fuel consumption (g/kw.h)	210
Unit size(mm) (L×W×H)	15506301150
Unit weight kg	500

Weichai is the first enterprise to develop and produce generating units in China, with a production history of more than 60 years,mainly producing land and Marine generating units, including diesel and gas type units. Engine product series include Yangchai series, Dowitz WP4/WP6 series, WP10 series, WP12 series, WP13 series, 160 series, 170 series, Baudouin series, 200 series, 250 series, MAN series and so on, the use of these engines and imported technology production of well-known brand generators at home and abroad, etc. The production of domestic leading technology generating units.

Weichai generator set is widely used in construction sites, factories, oil, mines, field rescue, agriculture and animal husbandry and common, standby power. The unit mainly has the following characteristics:

1.Wide power range of the unit: 10~4300KW
2.Low fuel consumption, low emissions, low noise
3.The unit has excellent performance, advanced technology, reliable work and easy maintenance.
4.High voltage regulation precision, good dynamic performance, compact structure, long service life.
5.Weichai products have carried out "three high" experiments of high altitude, high temperature and high cold all year round,and have strong environmental adaptability.
6.Start quickly, and can quickly reach full power only a few seconds, emergency 1 minute with due full load (normal 5~30MIN) stop process is short, can frequently start and stop.
7.Maintenance operation is simple, fewer people, easy maintenance during the standby period.

► Paying high attention to every details makes generator set excellent quality.

High-strength steel base frame.Thickness of steel plate ≧5mm ,nondeformable and anticorrosive paint.

Have deep cooperation with alternator suppliers such as Stamford, Leroy Somer and Faraday to assure stable power generation.

Using Well-know brand genset controller such us SmartGen, Deepsea and ComAp, easy operation.

Genuine spare parts. Make maintenance and repairment timely and easily.

Related Products

Company Profile

Our Factory

Our R & D team and production team have more than ten years of experience in the generator set industry. Every production process of each generator set has to pass a strict inspection by the quality control department. Perfect company management system and team enable us to make steady progress in the generator industry.

►Using high-strength steel base frame.Thickness of steel plate ≧5mm. With more than 20 years of welding experience’ workers careful operate. The base is stable and non deformable.

►Place the base frame on a level surface and install double damping shock absorbers;Chrome-plated surface, oil-resistant nitrile rubber, corrosion-resistant. Assemble famous brand engines with stable power generation and make sure every screw are tight and fix the engine without any shake.

► Assemble brand-new 100% full copper alternator. Ensure that every copper ring is properly excited. Double check that each wire inside the diesel engine and alternator is correctly connected with automatic generator controller panel.

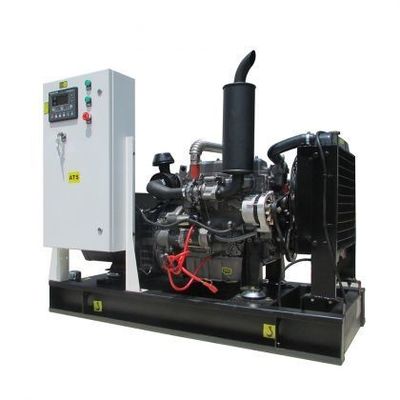

►An Automatic transfer switch panel is used with a diesel generator to automatically switch between the mains and generator in the event of a power failure. The generator will start / stop automatically depending on the mains supply. Make sure each wiring is perfect connected without loose.SmartGen and Deapsea control panels are widely used.

► Reset and debug the generator control panel. The Control Panels are installed with all diesel generator sets. Engine functions are interfaced with generator functions by the control panel, allowing for the engine and generator to be controlled by a single component. Make sure the generator control panel are operated smoothly without any fault.

►Strict pre-delivery testing to ensure that every customer is free to use the generator set. 100% power pass rate guaranteed.

►This is the most common way to pack diesel engine generators. We use foam, plastic wrap or bubble film to wrap the whole DG set with two or three layers. This packing way is cost-effective, convenient and efficient.

► We also use wooden case to pack the diesel generator set according to customers’ requirement. In order to ensure that the generator set in the container do not shake or knock. We use a special fixed way to ensure that the generator set in good condition to reach the customer.

We have sufficient stock of the generator sets powered by the famous brand engines such as Cummins, Weichai and SDEC.An adequate supply of generator set accessories enables us to deliver the products usually within 15 days.

Our Certificates

Our production and service strictly comply with ISO8525, GB/T 820 - 97 standards under the Management System of ISO9001 & ISO14001. All the generator from our factory are CE certified which thereby ensures high quality products and service from Bofa power.

Package & Transport

Our quality control department considers packing and shipping as important as the production details of the generator set. We have a professional packaging workshop and experienced workers. We have long-term and stable cooperation with many freight companies that have experience in generator set delivery. To ensure each generator set arrives every customer with perfect quality.

FAQ

Q1:What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your power capacity,voltage and frequency.

Q2: What is your power range of generators?
A: BOFA power provides the power range from 10KVA to 3000KVA.

Q3: How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.

Q4: What about the lead time?
A: Usually, BOFA power can deliver the order 15-30 working days after we get the prepayment.

Q5: What is your payment terms?
A: We accept T/T, irrevocable L/C at sight, and Alibaba trade assurance credit payment. Based on special order or special project, we can adjust payment terms.

Q6: What is your warranty?
A: BOFA Power offer one year or 1000 hours (accord to whichever reach first) from ex-factory date. The warranty for some special projects will be extended.
