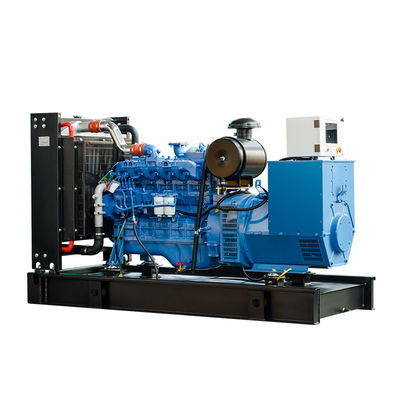

80kva 64kw Power Diesel Generator Set with YC4A100Z-D20 Engine and High Adaptability

Large Image : 80kva 64kw Power Diesel Generator Set with YC4A100Z-D20 Engine and High Adaptability

Product Details:

Place of Origin:	Shandong, China
Brand Name:	BOFA
Model Number:	64GF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000.00/sets 1-9 sets

Contact Now

80kva 64kw Power Diesel Generator Set with YC4A100Z-D20 Engine and High Adaptability

Description

Warranty:	3months-1year	Rated Voltage:	230V/400V
Rated Current:	115.2	Speed:	1500/1800
Frequency:	50HZ/60HZ	Starting System:	Auto Start, Remote Start, 12V DC Electric Start, 24V DC Electric Start
Weight:	1200kg	KW:	64
KVA:	80	Electric Current(A):	115.2
Diesel Engine Type:	YC4A100Z-D20	Number Of Cylinders:	4
Bore Diameter * Stroke(mm):	108	Exhaust Volume (L):	125
Lubricating Oil Capacity(L):	4.58	Fuel Consumption Rateg/kw.h:	≤200
Unit Size(mm) LWH:	22508001300

Product Display

Unit model	64GF
KW	64
KVA	80
Electric current(A)	115.2
Diesel engine type	YC4A100Z-D20
Number of cylinders	4
Bore diameter * stroke（mm）	108
Exhaust volume (L)	125
Lubricating oil capacity（L）	4.58
Fuel consumption rateg/kw.h	≤200
Unit size(mm) L×W×H	22508001300
Unit weight kg	1200

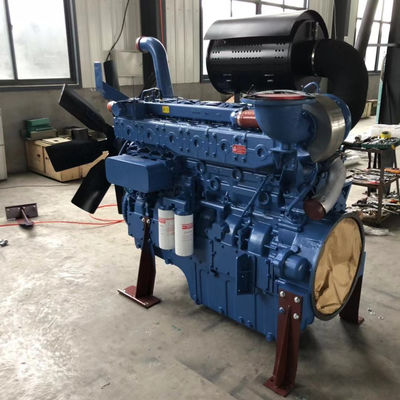

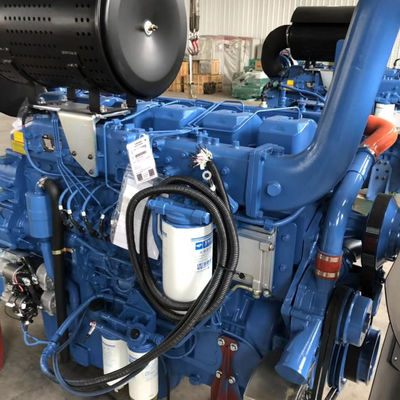

Yuchai engine is from Chinese state-owned enterprise. It has more than 70 years’ industry experience . Their products are exported to more than 180 countries and regions in Asia, Europe, America and Africa. With the advantages of high horsepower, high torque, high reliability, low fuel consumption, low noise, low emission and high adaptability, Yuchai engines have become the ideal choice power generation ,marine machinery and special vehicles all around the world.

► Paying high attention to every details makes generator set excellent quality.

High-strength steel base frame.Thickness of steel plate ≧5mm ,nondeformable and anticorrosive paint.

Have deep cooperation with alternator suppliers such as Stamford, Leroy Somer and Faraday to assure stable power generation.

Using Well-know brand genset controller such us SmartGen, Deepsea and ComAp, easy operation.

Genuine spare parts. Make maintenance and repairment timely and easily.

Related Products

Company Profile

Our Factory

Our R & D team and production team have more than ten years of experience in the generator set industry. Every production process of each generator set has to pass a strict inspection by the quality control department. Perfect company management system and team enable us to make steady progress in the generator industry.

►Using high-strength steel base frame.Thickness of steel plate ≧5mm. With more than 20 years of welding experience’ workers careful operate. The base is stable and non deformable.

►Place the base frame on a level surface and install double damping shock absorbers;Chrome-plated surface, oil-resistant nitrile rubber, corrosion-resistant. Assemble famous brand engines with stable power generation and make sure every screw are tight and fix the engine without any shake.

► Assemble brand-new 100% full copper alternator. Ensure that every copper ring is properly excited. Double check that each wire inside the diesel engine and alternator is correctly connected with automatic generator controller panel.

►An Automatic transfer switch panel is used with a diesel generator to automatically switch between the mains and generator in the event of a power failure. The generator will start / stop automatically depending on the mains supply. Make sure each wiring is perfect connected without loose.SmartGen and Deapsea control panels are widely used.

► Reset and debug the generator control panel. The Control Panels are installed with all diesel generator sets. Engine functions are interfaced with generator functions by the control panel, allowing for the engine and generator to be controlled by a single component. Make sure the generator control panel are operated smoothly without any fault.

►Strict pre-delivery testing to ensure that every customer is free to use the generator set. 100% power pass rate guaranteed.

►This is the most common way to pack diesel engine generators. We use foam, plastic wrap or bubble film to wrap the whole DG set with two or three layers. This packing way is cost-effective, convenient and efficient.

► We also use wooden case to pack the diesel generator set according to customers’ requirement. In order to ensure that the generator set in the container do not shake or knock. We use a special fixed way to ensure that the generator set in good condition to reach the customer.

We have sufficient stock of the generator sets powered by the famous brand engines such as Cummins, Weichai and SDEC.An adequate supply of generator set accessories enables us to deliver the products usually within 15 days.

Our Certificates

Our production and service strictly comply with ISO8525, GB/T 820 - 97 standards under the Management System of ISO9001 & ISO14001. All the generator from our factory are CE certified which thereby ensures high quality products and service from Bofa power.

Package & Transport

Our quality control department considers packing and shipping as important as the production details of the generator set. We have a professional packaging workshop and experienced workers. We have long-term and stable cooperation with many freight companies that have experience in generator set delivery. To ensure each generator set arrives every customer with perfect quality.

FAQ

Q1:What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your power capacity,voltage and frequency.

Q2:What is your power range of generators?
A: BOFA power provides the power range from 10KVA to 3000KVA.

Q3:How can you guarantee the quality?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging. Spare parts and technical solutions provided timely for machine failure.

Q4:What about the lead time?
A: Usually, BOFA power can deliver the order 15-30 working days after we get the prepayment.

Q5:What is your payment terms?
A: We accept T/T, irrevocable L/C at sight, and Alibaba trade assurance credit payment. Based on special order or special project, we can adjust payment terms.

Q6:What is your warranty?
A: BOFA Power offer one year or 1000 hours (accord to whichever reach first) from ex-factory date. The warranty for some special projects will be extended.
